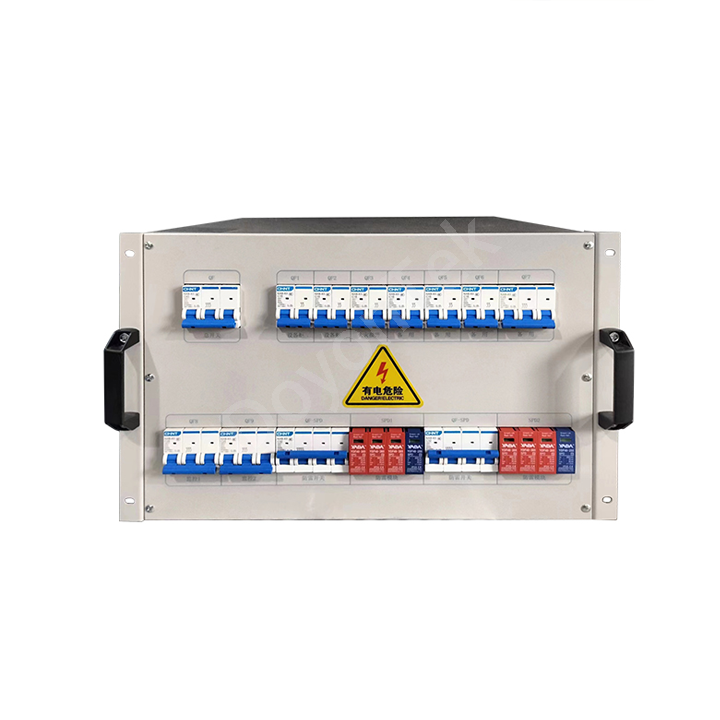

Internal Copper Busbar System for 415V Power Cabinet

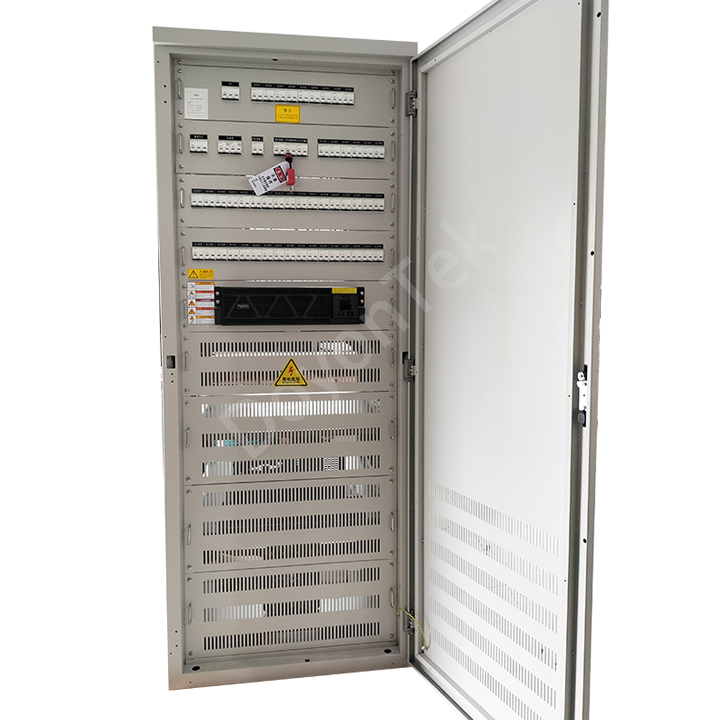

Internal T2 Copper Busbar System for 415V Control Panel

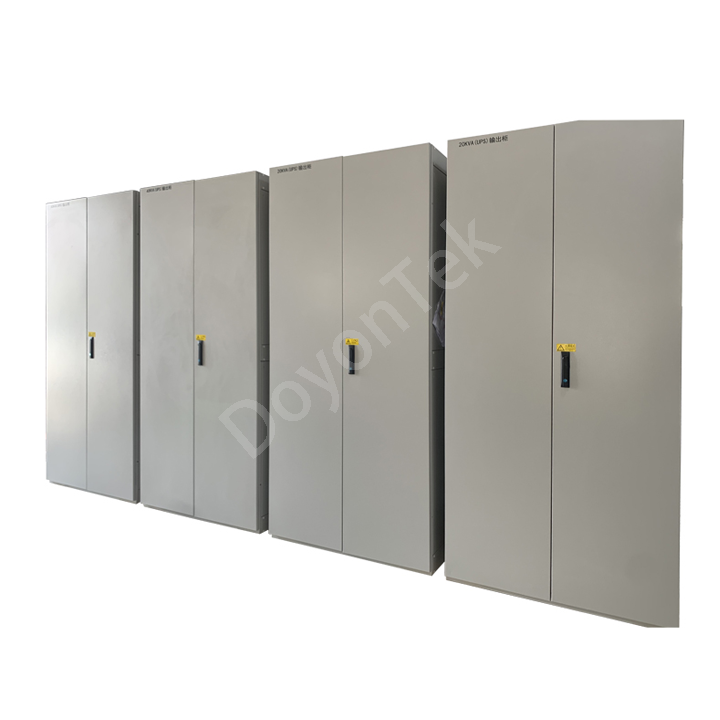

Modular LV Switchgear Suite for Data Center Power Room

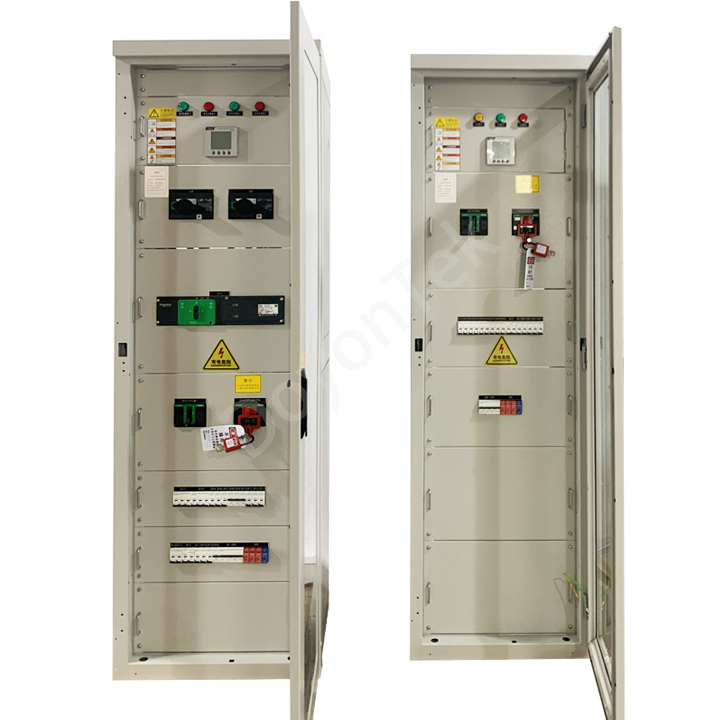

High-Capacity Power Distribution Unit for Data Centers

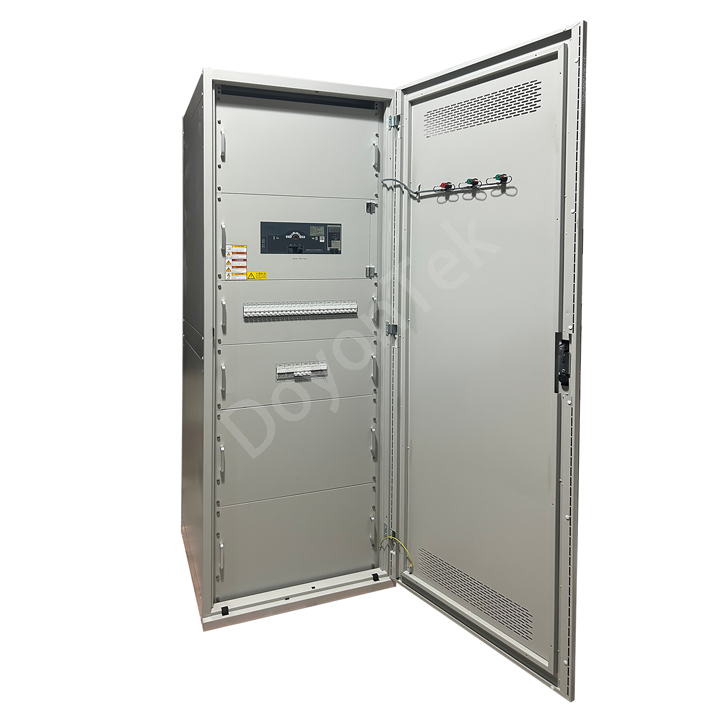

Intelligent Circuit Breaker Arrangement in LV Switchgear
DoyonTek 4000A High-Density LV Switchgear Cabinet Front View
Low Voltage (LV) Switchgear & Power Solutions

High-Density LV Switchgear Cabinet (800A-4000A) | Power Distribution Solution

High-performance, space-saving power distribution designed for modern mission-critical facilities. Supporting up to 4000A with a high-density vertical chassis, this cabinet is the ideal choice for high-tier data centers and large-scale industrial power rooms demanding maximum feeder capacity.

$ 2000-7000

Main Specifications

Rated Current 800A - 4000A (Customizable)
Internal Busbar T2 Copper (99.9% Purity)
Compliance IEC 61439-1/2, CE Certified
Cooling Natural / Forced Air
Quantity:
Send inquiry Comment

Technical Parameters

Rated Current 800A - 4000A (Customizable)
Rated Voltage 220V - 480V (Global Standards)
Cabinet Dimensions H2000/2200mm × W600/800/1000mm × D800/1000mm
Short-circuit Withstand 65kA / 100kA Icw per 1s (Customizable)
Internal Busbar T2 Copper (99.9% Purity)
Circuit Configuration Up to 16 Outgoing Ways + 1 Main Incoming
Ingress Protection IP22 / IP42 / IP54 (Customizable)
Security System Smart RFID / Biometric / Remote Web-unlocking
Compliance IEC 61439-1/2, CE Certified
Cooling Natural / Forced Air

Product Details

Watch the product walkthrough to see the high-density T2 busbar architecture and standardized vertical layout.

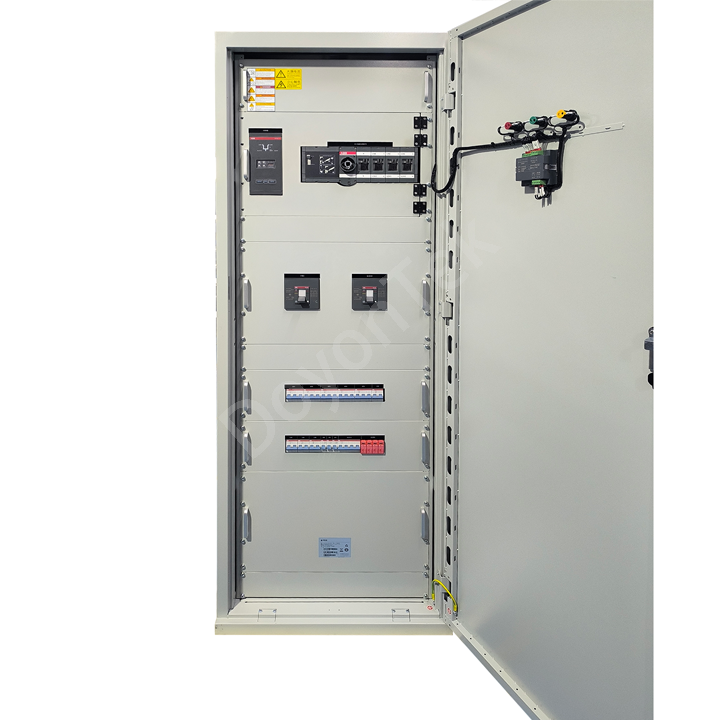

DoyonTek 4000A High-Density LV Switchgear Cabinet Front View Internal Copper Busbar System for 415V Power Cabinet Intelligent Circuit Breaker Arrangement in LV Switchgear High-Capacity Power Distribution Unit for Data Centers Modular LV Switchgear Suite for Data Center Power Room Intelligent Circuit Breaker and Metering Module Internal T2 Copper Busbar System for 415V Control Panel
