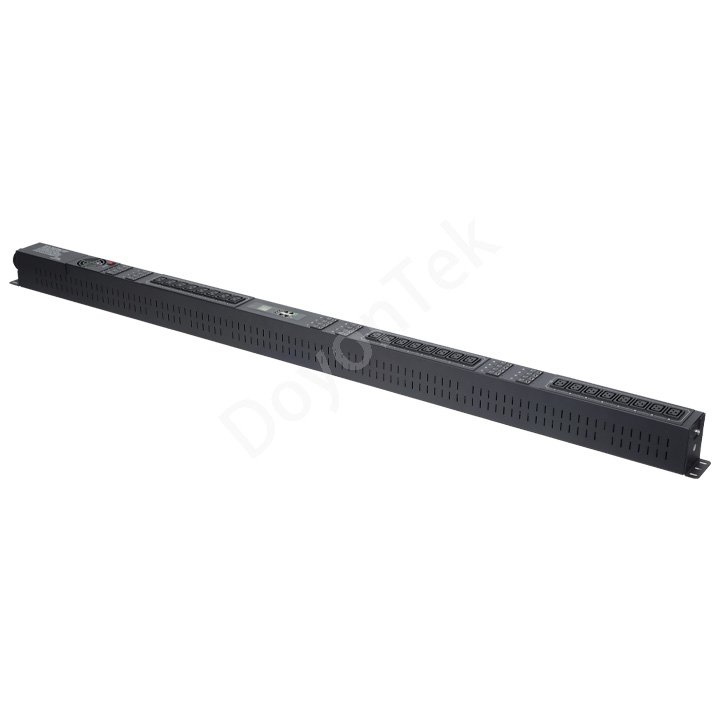

Rack Pdu Switched 0u 160A 480v 24 C19 Sockets Metal

Smart 0U Vertical Switched PDU for Data Centers

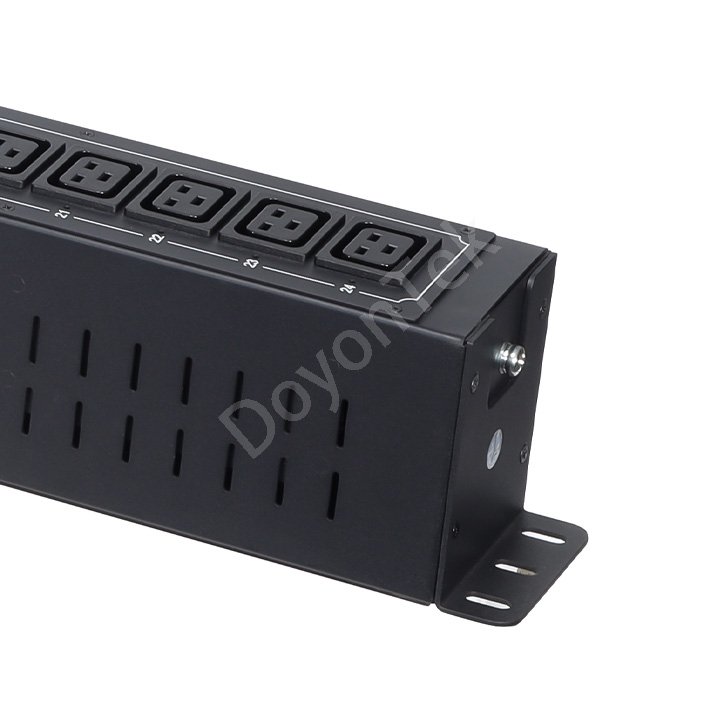

The DoyonTek 160A Switched PDU provides advanced power management for high-density IT environments. With 24 dedicated IEC C19 outlets, this 0U vertical unit allows administrators to monitor power consumption and switch individual outlets remotely.

Core Functionalities:

• Remote Outlet Switching: Restart hung servers or manage load shedding by turning off individual outlets via web interface.

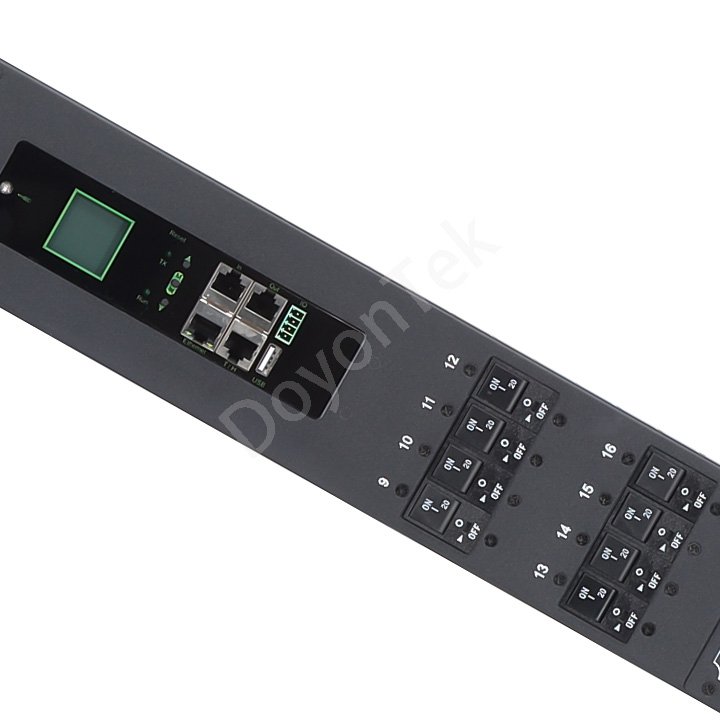

• Real-Time Monitoring: Track Aggregate Current, Voltage, Power (kW), and Energy Consumption (kWh).

• High-Density Design: 0U vertical installation saves valuable horizontal rack space.

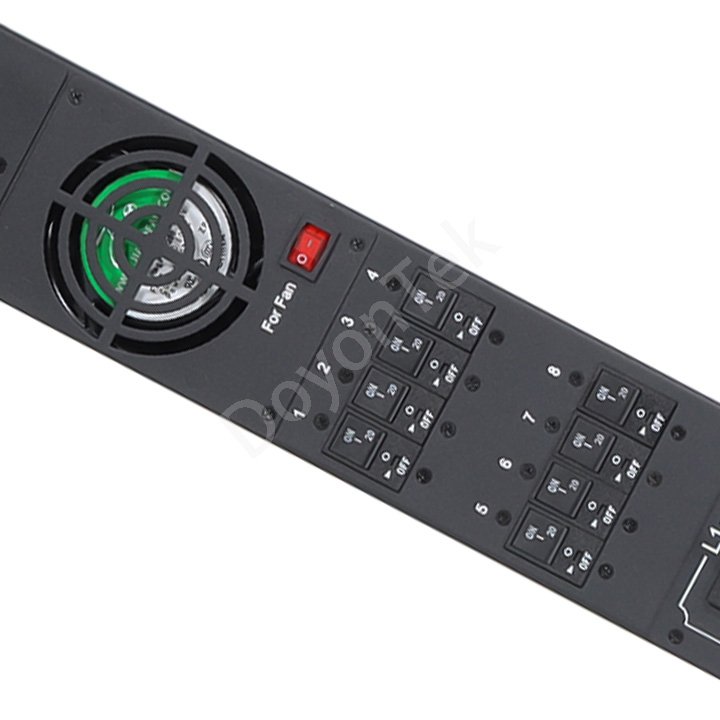

• Industrial Durability: Robust metal enclosure with 30A branch circuit protection.

 Frequently Asked Questions (FAQ)

Q1: Does the 160A Switched PDU support 480V 3-Phase power input?

A: Yes. This heavy-duty PDU is engineered for high-density enterprise environments. It supports a wide range of input voltages including 380V, 400V, 415V, and up to 480V, making it suitable for global data centers and industrial power grids.

Q2: Can I control and switch each of the 24 outlets individually?

A: Absolutely. As a Switched PDU, it allows administrators to remotely turn on, turn off, or reboot equipment connected to any of the 24 IEC C19 sockets via a web-based GUI, SNMP, or Telnet. This is ideal for managing hung servers without physical site visits.

Q3: What kind of branch circuit protection is included for such high amperage?

A: To ensure safety under 160A aggregate loads, the PDU is equipped with multiple industrial-grade hydraulic-magnetic circuit breakers (typically 30A per branch). This prevents a single device failure from tripping the entire rack’s power.

Q4: What communication protocols does the Smart PDU support for remote monitoring?

A: Our smart PDUs are compatible with standard data center management tools. They support SNMP (v1/v2c/v3), HTTP/HTTPS, Telnet, and SSH. You can integrate real-time power data (Amp, Volts, kW, kWh) into your existing DCIM software.

Q5: Is the 0U vertical mounting compatible with all server racks?

A: The PDU features a 0U vertical design with a height of 2080mm. It is designed to fit perfectly in the side channel of standard 42U and 48U server cabinets, saving valuable horizontal RU space for your active IT equipment.

Q6: Can I customize the input plug and cable length?

A: Yes, DoyonTek offers OEM/ODM customization. Since 160A requires specific terminal connections or high-capacity industrial plugs, we can customize the input cord length and connector type (e.g., Terminal block or Cam-lock) based on your facility requirements.
