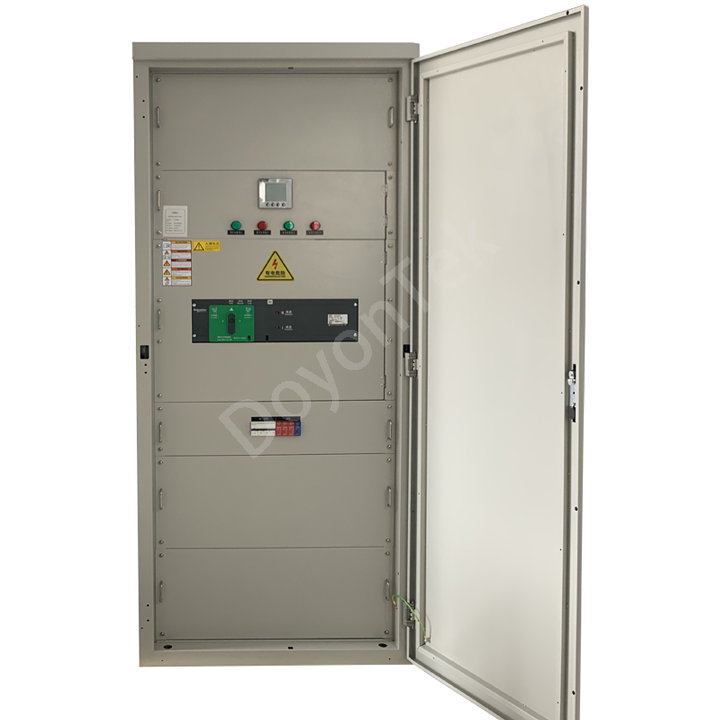

Compact LV Switchgear (800A-4000A)

Space-Saving Design: Compact LV Power Distribution Switchgear

Our Low-profile (Compact) Switchgear series is engineered for environments where space is premium, such as high-density data centers and modular server rooms. Despite its compact footprint, it supports heavy-duty applications from 800A to 4000A.

Key Advantages:

• Ultra-Compact Footprint: Specifically designed for height-restricted installations without compromising power density.

• Smart Security: Equipped with an Intelligent Smart Lock system for secure access management.

• Superior Versatility: Supports multiple rated voltages from 220V to 480V, making it compatible with global industrial standards.

• Reliable Monitoring: Integrated metering functions for real-time power tracking and energy efficiency analysis.

• High-Density Integration: Our specialized internal busbar arrangement reduces cabinet depth by 20%, allowing for more server racks in the same floor area.

• Thermal Efficiency: Despite the compact size, advanced ventilation slots and high-conductivity copper ensure minimal heat build-up even at 4000A full load.

• Ready for Smart Grids: Pre-configured with intelligent meters that support Modbus-RTU/TCP, enabling seamless integration into your Building Management System (BMS).

• Copper Busbar System: High-purity T2 copper for maximum conductivity.

• Modular Expansion: Easy to scale as your data center grows.

• Real-time Analytics: Smart meters for voltage, current, and THD (Total Harmonic Distortion) monitoring.

Technical Specifications:

• Rated Current: 800A, 1200A, 2000A, 4000A (Customizable)

• IP Rating: IP22 (Indoor optimized with efficient airflow)

• Socket Configurations: Options for 8, 12, or 16-way distribution.

• Compliance: Fully IEC compliant for industrial and data center applications.

FAQ

• Q: Why choose a low-profile switchgear design?

• A: It is ideal for facilities with low ceilings or raised floors, providing the same high-current capacity (up to 4000A) while saving up to 30% of vertical space.

• Q: Can the socket number be customized for my server room?

• A: Yes, we offer OEM/ODM services to customize the internal socket arrangement and breaker types to match your specific hardware requirements.

• Q: Is the smart lock system compatible with my existing security system?

• A: Our smart locks can be integrated with most DCIM and access control systems for centralized security management.

• Q: What is the benefit of the low-profile height for modular data centers?

• A: It allows for easier installation in containerized or prefabricated data center modules where ceiling clearance is limited, ensuring sufficient space for top-entry cable trays and cooling ducts.
